Case study: re-analysis of frog (Xenopus tropicalis) embryogenesis single-cell data

This notebook will demonstrate scRNA-seq processing with oggmap using frog scRNA data from (Briggs et al. 2018; Qiu et al., 2022).

scRNA data were obtained from http://tome.gs.washington.edu/, converted into Scanpy AnnData objects (Wolf et al., 2018) and are availabe here:

https://zenodo.org/record/7244441

or can be accessed with the dataset submodule of oggmap

datasets.qiu22_frog(datapath='data') (download folder set to 'data').

Notebook file

Notebook file can be obtained here:

https://raw.githubusercontent.com/kullrich/oggmap/main/docs/notebooks/frog_example.ipynb

Steps

To process the scRNA data, we will do the following:

0. Run OrthoFinder to obtain orthogroups

1. Get query species taxonomic lineage information

2. Get query species orthomap

3. Map OrthoFinder gene names and scRNA gene/transcript names

4. Get TEI values and add them to scRNA dataset

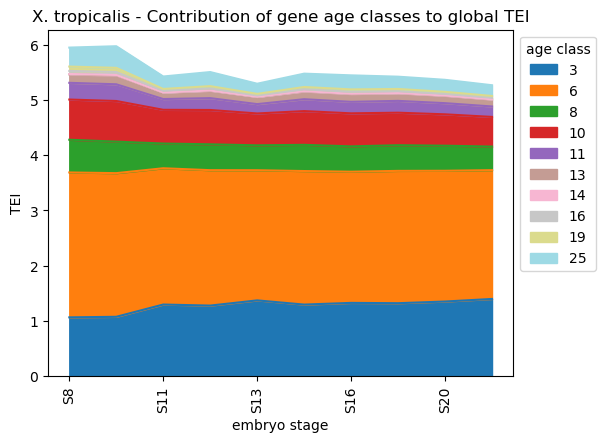

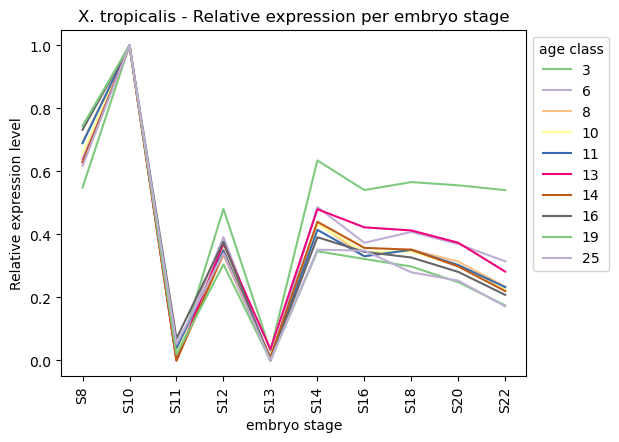

5. Get partial TEI values to visualize gene age class contributions

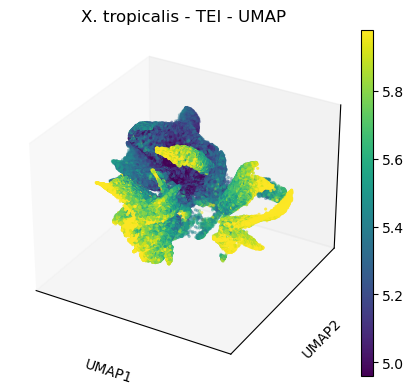

6. Process scRNA data and visualize TEI

Import libraries

import numpy as np
import pandas as pd
import scanpy as sc
import seaborn as sns
import matplotlib.pyplot as plt
from statannot import add_stat_annotation
# increase dpi
%matplotlib inline
#plt.rcParams['figure.dpi'] = 300
#plt.rcParams['savefig.dpi'] = 300
plt.rcParams['figure.figsize'] = [6, 4.5]
#plt.rcParams['figure.figsize'] = [4.4, 3.3]

Import oggmap python package submodules

# import submodules
from oggmap import qlin, gtf2t2g, of2orthomap, orthomap2tei, datasets

Step 0 - run OrthoFinder to obtain orthogroups

oggmap can extract gene age classification from existing OrthoFinder results and link them with scRNA data.

A detailed how-to is available here:

https://oggmap.readthedocs.io/en/latest/tutorials/orthofinder.html

However, any pre-calculated gene age classification can be imported as a table using the function orthomap2tei.read_orthomap(orthomapfile=filename).

The pre-calculated gene age classification file should be delimited with two columns GeneID<tab>Phylostratum, like e.g.:

GeneID<tab>Phylostratum
WBGene00000001<tab>1
WBGene00000002<tab>1
WBGene00000003<tab>1
WBGene00000004<tab>1
WBGene00000005<tab>2

OrthoFinder (Emms and Kelly, 2019) results (-S last) using translated, longest-isoform coding sequences (CDS) from Ensembl release-110, including species taxonomic IDs, are available here:

https://doi.org/10.5281/zenodo.7242264

or can be accessed with the dataset submodule of oggmap

datasets.ensembl110_last(datapath='data') (download folder set to 'data').

To be able to process the scRNA data from Briggs et al. 2018 the OrthoFinder run for Ensembl release-110 was supplemented with the gene models of X. tropicalis v9.0 https://ftp.xenbase.org/pub/Genomics/JGI/Xentr9.0/Xtropicalisv9.0.Named.primaryTrs.pep.fa.gz.

This use case show that with OrthoFinder it is possible to add any new annotation as a new entry and use it with oggmap to extract the correspoding gene age assignments.

datasets.ensembl110_last(datapath='data')

100% [..........................................................] 11317 / 11317

['data/ensembl_110_orthofinder_last_Orthogroups.GeneCount.tsv.zip',
 'data/ensembl_110_orthofinder_last_Orthogroups.tsv.zip',
 'data/ensembl_110_orthofinder_last_species_list.tsv']

Step 1 - get query species taxonomic lineage information

Given a species name or taxonomic ID, the query species lineage information is extracted with the help of the ete3 python toolkit and the NCBI taxonomy (Huerta-Cepas et al., 2016). This information is needed alongside with the taxonomic classifications for all species used in the OrthoFinder comparison.

The oggmap submodule qlin helps to get this information for you with the qlin.get_qlin() function as follows:

# get query species taxonomic lineage information
query_lineage = qlin.get_qlin(q='Xenopus tropicalis')

query name: Xenopus tropicalis
query taxID: 8364
query kingdom: Eukaryota
query lineage names:
['root(1)', 'cellular organisms(131567)', 'Eukaryota(2759)', 'Opisthokonta(33154)', 'Metazoa(33208)', 'Eumetazoa(6072)', 'Bilateria(33213)', 'Deuterostomia(33511)', 'Chordata(7711)', 'Craniata(89593)', 'Vertebrata(7742)', 'Gnathostomata(7776)', 'Teleostomi(117570)', 'Euteleostomi(117571)', 'Sarcopterygii(8287)', 'Dipnotetrapodomorpha(1338369)', 'Tetrapoda(32523)', 'Amphibia(8292)', 'Batrachia(41666)', 'Anura(8342)', 'Pipoidea(30319)', 'Pipidae(8352)', 'Xenopodinae(8360)', 'Xenopus(8353)', 'Silurana(8363)', 'Xenopus tropicalis(8364)']
query lineage:
[1, 131567, 2759, 33154, 33208, 6072, 33213, 33511, 7711, 89593, 7742, 7776, 117570, 117571, 8287, 1338369, 32523, 8292, 41666, 8342, 30319, 8352, 8360, 8353, 8363, 8364]

Step 2 - gene age class assignment (query species orthomap)

Here, oggmap use the query species information and OrthoFinder results to extract the oldest common tree node per orthogroup along a species tree and to assign this node as the gene age to the corresponding genes.

In a pairwise manner, the query species and any other species in the OrthoFinder result might share multiple tree nodes down to the root of the species tree, but have only one youngest tree node in common. Among all possible comparison between the query species and the other species, the oldest as defined by the species tree root is seected and used for the gene age assignment.

Given the query species sequence name (seqname=) used in the OrthoFinder comparison, the query species taxonomic ID(qt=), the taxonomic IDs of all species (sl=) used in the OrthoFinder comparison, the orthogroup gene count (oc=) results and the orthogroups (og=), an orthomap is constructed.

Note: This step can take up to five minutes, depending on your hardware.

For this step to get the query species orthomap, one uses the of2orthomap.get_orthomap() function, like:

# get query species orthomap

# download orthofinder results here: https://doi.org/10.5281/zenodo.7242264
# or download with datasets.ensembl110_last('data')
query_orthomap, orthofinder_species_list, of_species_abundance = of2orthomap.get_orthomap(
    seqname='Xtropicalisv9.0.Named.primaryTrs.pep',
    qt='8364',
    sl='data/ensembl_110_orthofinder_last_species_list.tsv',
    oc='data/ensembl_110_orthofinder_last_Orthogroups.GeneCount.tsv.zip',
    og='data/ensembl_110_orthofinder_last_Orthogroups.tsv.zip',
    continuity=True)
query_orthomap

Xtropicalisv9.0.Named.primaryTrs.pep
Xenopus tropicalis
8364
                                    species  taxID  \
0                 10020.dipodomys_ordii.pep  10020
1    10029.cricetulus_griseus_chok1gshd.pep  10029
2       10029.cricetulus_griseus_crigri.pep  10029
3         10029.cricetulus_griseus_picr.pep  10029
4            10036.mesocricetus_auratus.pep  10036
..                                      ...    ...
313          9986.oryctolagus_cuniculus.pep   9986
314        99883.tetraodon_nigroviridis.pep  99883
315        9994.marmota_marmota_marmota.pep   9994
316            9999.urocitellus_parryii.pep   9999
317    Xtropicalisv9.0.Named.primaryTrs.pep   8364

                                               lineage  youngest_common  \
0    [1, 131567, 2759, 33154, 33208, 6072, 33213, 3...            32523
1    [1, 131567, 2759, 33154, 33208, 6072, 33213, 3...            32523
2    [1, 131567, 2759, 33154, 33208, 6072, 33213, 3...            32523
3    [1, 131567, 2759, 33154, 33208, 6072, 33213, 3...            32523
4    [1, 131567, 2759, 33154, 33208, 6072, 33213, 3...            32523
..                                                 ...              ...
313  [1, 131567, 2759, 33154, 33208, 6072, 33213, 3...            32523
314  [1, 131567, 2759, 33154, 33208, 6072, 33213, 3...           117571
315  [1, 131567, 2759, 33154, 33208, 6072, 33213, 3...            32523
316  [1, 131567, 2759, 33154, 33208, 6072, 33213, 3...            32523
317  [1, 131567, 2759, 33154, 33208, 6072, 33213, 3...             8364

          youngest_name
0             Tetrapoda
1             Tetrapoda
2             Tetrapoda
3             Tetrapoda
4             Tetrapoda
..                  ...
313           Tetrapoda
314        Euteleostomi
315           Tetrapoda
316           Tetrapoda
317  Xenopus tropicalis

[318 rows x 5 columns]

	seqID	Orthogroup	PSnum	PStaxID	PSname	PScontinuity
0	LOC100485125	OG0000000	6	33213	Bilateria	0.777778
1	LOC100485127	OG0000000	6	33213	Bilateria	0.777778
2	LOC100485283	OG0000000	6	33213	Bilateria	0.777778
3	LOC100485369	OG0000000	6	33213	Bilateria	0.777778
4	LOC100485372	OG0000000	6	33213	Bilateria	0.777778
...	...	...	...	...	...	...
24019	Xetrov90018953m	OG0037628	25	8364	Xenopus tropicalis	1.000000
24020	Xetrov90028748m	OG0037629	25	8364	Xenopus tropicalis	1.000000
24021	Xetrov90028749m	OG0037629	25	8364	Xenopus tropicalis	1.000000
24022	Xetrov90030626m	OG0037630	25	8364	Xenopus tropicalis	1.000000
24023	Xetrov90030627m	OG0037630	25	8364	Xenopus tropicalis	1.000000

24024 rows × 6 columns

Gene age assignments per query species lineage node

Given an orthomap, one can get an overview of the gene age assignments per query species lineage node.

The oggmap submodule of2orhomap and the of2orthomap.get_counts_per_ps() function will show the distribution of the gene age classes and can be further visualized as follows:

# show count per taxonomic group (PStaxID)
of2orthomap.get_counts_per_ps(query_orthomap)

	PSnum	counts	PStaxID	PSname
PSnum
3	3	3912	33154	Opisthokonta
6	6	9106	33213	Bilateria
8	8	2399	7711	Chordata
10	10	2325	7742	Vertebrata
11	11	1532	7776	Gnathostomata
13	13	783	117571	Euteleostomi
14	14	51	8287	Sarcopterygii
16	16	260	32523	Tetrapoda
19	19	403	8342	Anura
25	25	3253	8364	Xenopus tropicalis

Visualize number of species along query lineage and counts per gene age class

# show number of species along query lineage
of_species_abundance

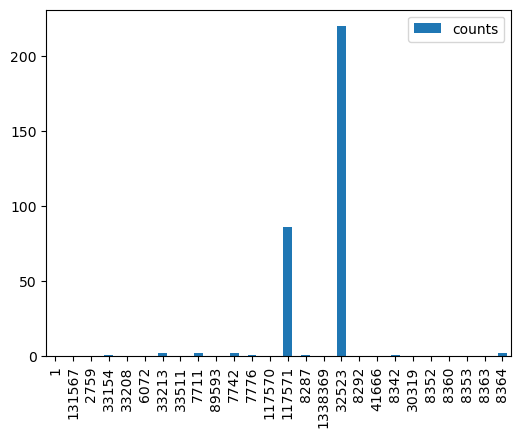

# bar plot number of species along query lineage
of_species_abundance.plot.bar(y='counts', use_index=True)

<AxesSubplot: >

# show count per taxonomic group (PStaxID)
of2orthomap.get_counts_per_ps(query_orthomap)

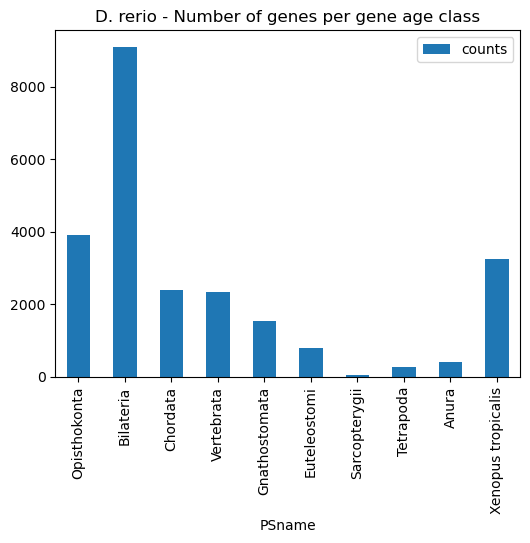

# bar plot count per taxonomic group (PSname)
ax = of2orthomap.get_counts_per_ps(query_orthomap).plot.bar(y='counts', x='PSname')
ax.set_title('D. rerio - Number of genes per gene age class')
plt.show()

Step 3 - map OrthoFinder gene names and scRNA gene/transcript names

To be able to link gene ages assignments from an orthomap and gene or transcript of scRNA dataset, one needs to check the overlap of the annotated gene names. With the gtf2t2g submodule of oggmap and the gtf2t2g.parse_gtf() function, one can extract gene and transcript names from a given gene feature file (GTF).

Here, the gene models from X. tropicalis v9.0 were used and gene names already should overlap with the orthomap gene names (Briggs et al. 2018; https://ftp.xenbase.org/pub/Genomics/JGI/Xentr9.0/Xtropicalisv9.0.Named.primaryTrs.pep.fa.gz).

If in your case gene or transcript IDs between an orthomap and scRNA data do not match directly, please have a look at a detailed how-to to match them:

https://oggmap.readthedocs.io/en/latest/tutorials/geneset_overlap.html

Import now, the scRNA dataset of the query species

Here, data is used, like in the publication (Briggs et al. 2018; Qiu et al., 2022).

scRNA data was downloaded from http://tome.gs.washington.edu/ as R rds files, combined into a single Seurat object and converted into loom and AnnData (h5ad) files to be able to analyse with e.g. python scanpy or oggmap package and is available here:

https://doi.org/10.5281/zenodo.7244440

or can be accessed with the dataset submodule of oggmap:

datasets.qiu22_frog(datapath='data') (download folder set to 'data').

# load scRNA data

# download zebrafish scRNA data here: https://doi.org/10.5281/zenodo.7244440
# or download with datasets.qui22_frog(datapath='data')

#frog_data = datasets.qiu22_zebrafish(datapath='data')
frog_data = sc.read('data/frog_data.h5ad')

Get an overview of observations

frog_data

AnnData object with n_obs × n_vars = 123633 × 26550
    obs: 'orig.ident', 'nCount_RNA', 'nFeature_RNA', 'sample', 'stage', 'group', 'cell_state', 'cell_type'
    var: 'features', 'genes'

frog_data.obs

	orig.ident	nCount_RNA	nFeature_RNA	sample	stage	group	cell_state	cell_type
S8_cell_1	cell	20658.0	5506	cell_1	S8	Clutch_1	S8:blastula	blastula
S8_cell_2	cell	17002.0	5209	cell_2	S8	Clutch_1	S8:blastula	blastula
S8_cell_3	cell	16190.0	4880	cell_3	S8	Clutch_1	S8:blastula	blastula
S8_cell_4	cell	15652.0	4930	cell_4	S8	Clutch_1	S8:blastula	blastula
S8_cell_5	cell	14325.0	4598	cell_5	S8	Clutch_1	S8:blastula	blastula
...	...	...	...	...	...	...	...	...
S22_cell_136962	cell	1809.0	721	cell_136962	S22	Clutch_6	S22:somite	somite
S22_cell_136963	cell	1575.0	789	cell_136963	S22	Clutch_6	S22:somite	somite
S22_cell_136964	cell	1393.0	677	cell_136964	S22	Clutch_6	S22:intermediate mesoderm (ssg1+)	intermediate mesoderm (ssg1+)
S22_cell_136965	cell	1193.0	603	cell_136965	S22	Clutch_6	S22:spinal cord	spinal cord
S22_cell_136966	cell	811.0	516	cell_136966	S22	Clutch_6	S22:presomitic mesoderm	presomitic mesoderm

123633 rows × 8 columns

Helper functions to match gene names

The orthomap2tei submodule contains the orthomap2tei.geneset_overlap() helper function to check for gene name overlap between the constructed orthomap from OrthoFinder results and a given scRNA dataset.

# check overlap of orthomap <seqID> and scRNA data <var_names>
orthomap2tei.geneset_overlap(frog_data.var_names, query_orthomap['seqID'])

	g1_g2_overlap	g1_ratio	g2_ratio
0	24023	0.904821	0.999958

Step 4 - Get TEI values and add them to scRNA dataset

Since now the gene names correspond to each other in the orthomap and the scRNA adata object, one can calculate the transcriptome evolutionary index (TEI) and add them to the scRNA dataset (adata object).

The TEI measure represents the weighted arithmetic mean (expression levels as weights for the phylostratum value) over all evolutionary age categories denoted as phylostra.

\({TEI_s = \sum (e_{is} * ps_i) / \sum e_{is}}\)

, where \({TEI_s}\) denotes the TEI value in developmental stage \({s, e_{is}}\) denotes the gene expression level of gene \({i}\) in stage \({s}\), and \({ps_i}\) denotes the corresponding phylostratum of gene \({i, i = 1,...,N}\) and \({N = total\ number\ of\ genes}\).

Note: If e.g. two different isoforms would fall into two different gene age classes, their gene ages might differ based on the oldest ortholog found in their corresponding orthologous groups. However, both isoforms share the same gene name and their gene ages would clash. In this case one can decide either to use the keep='min' or keep='max' gene age to be kept by the get_tei function, which defaults to keep in this cases the keep='min' or in other words the ‘older’ gene age.

To be able to re-use the original count data, they are added as a new layer to the adata object. This is useful because later on the count data can be used to extract either the relative expression per gene age class or re-calculate other metrics.

This can be done either on un-normalized counts, on normalized and log-transformed data.

frog_data.layers['counts'] = frog_data.X

add TEI to adata object

Using the submodule orthomap2tei from oggmap and the orthomap2tei.get_tei() function, transcriptome evolutionary index (TEI) values are calculated and directyl added to the existing adata object (add_obs=True).

There are other options to e.g. not start from the adata.X counts but from another layer from the adata object, the default is to use the adata.X (layer=None). The values can be pre-processed by the normalize_total option and the log1p option.

If add_obs=True the resulting TEI values are added to the existing adata object as a new observation with the name set with the obs_name option.

If add_var=True the gene age values are added to the existing adata object as a new variable with the name set with the var_name option.

Note: Genes not assigned to any gene class will get a missing assignment.

If one wants to calculate bootstrap TEI values per cell, the boot option can be set to boot=True and gene age classes will be randomly chosen prior calculating TEI values bt=10 times.

# add TEI values to existing adata object
orthomap2tei.get_tei(adata=frog_data,
    gene_id=query_orthomap['seqID'],
    gene_age=query_orthomap['PSnum'],
    keep='min',
    layer=None,
    add_var=True,
    var_name='Phylostrata',
    add_obs=True,
    obs_name='tei',
    boot=False,
    bt=10,
    normalize_total=True,
    log1p=True,
    target_sum=1e6)

	tei
S8_cell_1	6.149558
S8_cell_2	6.158777
S8_cell_3	6.179419
S8_cell_4	6.107512
S8_cell_5	6.119982
...	...
S22_cell_136962	5.089091
S22_cell_136963	5.087404
S22_cell_136964	5.009514
S22_cell_136965	5.155880
S22_cell_136966	5.133554

123633 rows × 1 columns

Step 5 - downstream analysis

Once the gene age data has been added to the scRNA dataset, one can e.g. plot the corresponding transcriptome evolutionary index (TEI) values by any given observation pre-defined in the scRNA dataset.

Here, we plot them against the assigned embryo stage and against assigned cell types of the zebrafish using the scanpy sc.pl.violin() function as follows:

Boxplot gene age class per sample timepoint

sc.pl.violin(adata=frog_data,
             keys=['tei'],
             groupby='stage',
             rotation=90,
             palette='Paired',
             stripplot=False,
             inner='box')

To alter ylim do:

fig, ax = plt.subplots()
sc.pl.violin(adata=frog_data,
             keys=['tei'],
             groupby='stage',
             rotation=90,
             palette='Paired',
             stripplot=False,
             inner='box',
             ax=ax,
             show=False)
ax.set_ylim(5, 7)
plt.show()

Boxplot gene age class per embryo stage and per cell type

E.g. to just show the same plot for a selected cell-type, one could do the following.

1. List all annotated cell types:

list(set(frog_data.obs['cell_type']))

['optic neuron',
 'neural plate posterior (nkx2-1+)',
 'spinal cord',
 'neuron - ina',
 'hatching gland',
 'Rohon-beard neuron',
 'hindbrain',
 'blood',
 'neural plate anterior (fezf1+)',
 'optic vesicle',
 'placodal area',
 'ciliated epidermal progenitor',
 'migrating myeloid progenitor',
 'chordal neural crest',
 'olfactory placode',
 'presomitic mesoderm',
 'germ cell',
 'cement gland primordium',
 'cranial neural crest',
 'placodal neuron',
 'beta ionocyte',
 'gut',
 'neuroendocrine cell',
 'anterior placodal area',
 'ionocyte',
 'dorsal lateral plate region',
 'intermediate mesoderm',
 'endoderm',
 'ventral blood island',
 'tail bud',
 'intermediate mesoderm (ssg1+)',
 'epidermal',
 'posterior placodal area',
 'somite',
 'neural crest',
 'neural plate posterior',
 'dorsal marginal zone',
 'epibranchial and lateral line placode',
 'lateral plate mesoderm',
 'otic placode',
 'pronephric mesenchyme',
 'early neuron',
 'eye primordium',
 'endothelial hemangioblast progenitor',
 'ectoderm',
 'chordal neural plate border',
 'surface ectoderm',
 'goblet cell',
 'marginal zone',
 'neural plate anterior',
 'lens placode',
 'notoplate',
 'adenohypophyseal placode',
 'neuroectoderm',
 'cardiac mesoderm',
 'alpha ionocyte',
 'involuted ventral mesoderm',
 'small secretory cells',
 'notochord',
 'blastula']

2. Loop over all cell types:

Note: Please change notebook cell from raw to code to see the plots.

for ct in list(set(frog_data.obs['cell_type'])): ax = sc.pl.violin(adata=frog_data[frog_data.obs['cell_type']==ct], keys=['tei'], groupby='stage', rotation=90, palette='Paired', stripplot=False, inner='box', order=list(frog_data.obs['stage'].cat.categories), show=False) ax.set_title(ct) ax.set_xlabel('stage') plt.show()

Plot relative expression per gene age class per sample stage

frog_data_rematrix_grouped = orthomap2tei.get_rematrix(
    adata=frog_data,
    gene_id=query_orthomap['seqID'],
    gene_age=query_orthomap['PSnum'],
    keep='min',
    layer=None,
    use='counts',
    var_type='mean',
    group_by_obs='stage',
    obs_fillna='__NaN',
    obs_type='mean',
    standard_scale=0,
    normalize_total=True,
    log1p=True,
    target_sum=1e6)
frog_data_rematrix_grouped

stage	S8	S10	S11	S12	S13	S14	S16	S18	S20	S22
ps
3	0.549148	1.0	0.000000	0.481208	0.030958	0.635034	0.540971	0.566287	0.556049	0.540787
6	0.640801	1.0	0.025922	0.391773	0.000000	0.487045	0.373626	0.408093	0.369463	0.314640
8	0.693043	1.0	0.002146	0.335158	0.000000	0.435697	0.330510	0.351909	0.314005	0.234338
10	0.657684	1.0	0.027835	0.361469	0.000000	0.432258	0.345035	0.345311	0.302562	0.223977
11	0.689678	1.0	0.038879	0.349611	0.000000	0.414623	0.330977	0.351258	0.302937	0.232756
13	0.630477	1.0	0.000000	0.371492	0.034908	0.480240	0.422663	0.412788	0.373843	0.281930
14	0.628787	1.0	0.000000	0.340251	0.010592	0.440440	0.357441	0.351782	0.298162	0.220355
16	0.732670	1.0	0.069467	0.376976	0.000000	0.391185	0.345026	0.326862	0.281135	0.208118
19	0.744651	1.0	0.019259	0.305098	0.000000	0.346719	0.322236	0.298132	0.248512	0.174518
25	0.617543	1.0	0.051890	0.340161	0.000000	0.351700	0.348766	0.279890	0.253492	0.171583

ax = sns.lineplot(frog_data_rematrix_grouped.transpose(), palette='Accent', dashes=False)
ax.legend(fontsize=5, title='age class')
ax.set_title('X. tropicalis - Relative expression per embryo stage')
ax.set_xlabel('embryo stage')
ax.set_ylabel('Relative expression level')
sns.move_legend(ax, 'upper left', bbox_to_anchor=(1, 1))
#plt.tick_params(labelsize=3)
plt.xticks(rotation=90)
plt.show()

Get partial TEI values to visualize gene age class contributions

Partial TEI values can give an idea about which gene age class contributed at most to the global TEI pattern.

In detail, each gene gets a TEI contribution profile as follows:

\({TEI_{is} = f_{is} * ps_i}\)

, where \({TEI_{is}}\) is the partial TEI value of gene \({i}\), \({f_{is} = e_{is} / \sum e_{is}}\) and \({ps_i}\) is the phylostratum of gene i.

\({TEI_{is}}\) values are combined per \({ps}\).

The partial TEI values combined per strata give an overall impression of the contribution of each strata to the global TEI pattern.

One can either start from counts (adata.X) which is set as default or any other layer defined by the layer option (layer=None).

In addition, the counts can be normalized and log-transformed prior calculating partial TEI values (normalize_total=False, log1p=False, target_sum=1e6).

Further, these values can be combined per given observation, e.g. cell typer per sample timepoint (group_by='cell_state').

The get_pstrata function of the orthomap2tei submodule will return two matrix, the first contains the sum of each partial TEI per gene age class and the second the corresponding frequencies.

Both can be further processed by returning the cumsum over the gene age classes. To get them set the option cumsum=True. The cumsum will result in either for the first matrix the TEI value per cell or mean TEI value per group, if one choose a observation with the group_by option. Or in case of the second frequency matrix will result in 1.

With the standard_scale option either gene age classes (standard_scale=0 rows) or cells or groups (standard_scale=1 columns) can be scaled, subtract the minimum and divide each by its maximum. By default no scaling is applied (standard_scale=None).

The resulting data will be visualized in the downstream section.

frog_pstrata = orthomap2tei.get_pstrata(adata=frog_data,
    gene_id=query_orthomap['seqID'],
    gene_age=query_orthomap['PSnum'],
    keep='min',
    layer=None,
    cumsum=False,
    group_by_obs='stage',
    obs_fillna='__NaN',
    obs_type='mean',
    standard_scale=None,
    normalize_total=True,
    log1p=True,
    target_sum=1e6)
frog_pstrata[0]

stage	S8	S10	S11	S12	S13	S14	S16	S18	S20	S22
ps
3	1.065076	1.075439	1.297339	1.278294	1.372506	1.296431	1.327240	1.321580	1.351918	1.398437
6	2.622632	2.599675	2.466392	2.450787	2.355235	2.416976	2.374067	2.394803	2.366329	2.330845
8	0.592121	0.570923	0.447412	0.467962	0.450746	0.474230	0.458361	0.464511	0.453797	0.426489
10	0.727489	0.734946	0.610400	0.621289	0.576776	0.610543	0.597909	0.588380	0.567627	0.537077
11	0.302491	0.302306	0.194769	0.214507	0.169287	0.215232	0.208144	0.213954	0.202081	0.189009
13	0.152253	0.160325	0.116740	0.133355	0.130488	0.140070	0.141939	0.137429	0.133691	0.125851
14	0.007637	0.008593	0.002546	0.004719	0.002786	0.005428	0.005013	0.004905	0.004333	0.003908
16	0.055560	0.053634	0.031272	0.037389	0.023350	0.033688	0.034344	0.032508	0.030156	0.027722
19	0.078653	0.074998	0.031865	0.041560	0.028736	0.041675	0.043754	0.040797	0.036679	0.032713
25	0.343420	0.391323	0.225555	0.254838	0.183497	0.241658	0.254372	0.222163	0.217640	0.194108

#plt.rcParams['figure.figsize'] = [9, 4.5]
ax=frog_pstrata[0].transpose().plot.area(cmap='tab20')
ax.legend(fontsize=3, title='age class')
ax.set_title('X. tropicalis - Contribution of gene age classes to global TEI')
ax.set_xlabel('embryo stage')
ax.set_ylabel('TEI')
sns.move_legend(ax, 'upper left', bbox_to_anchor=(1, 1))
plt.xticks(rotation=90)
plt.show()
#plt.rcParams['figure.figsize'] = [6, 4.5]

Color UMAP/TSNE by TEI

Follwoing the basic tutorial of the Scanpy python toolkit (Wolf et al., 2018), one can highlight TEI values on a dimensional reduction of the scRNA dataset, like PCA, UMAP or TSNE.

Filtering

sc.pp.filter_genes(frog_data, min_cells=3)
sc.pp.filter_cells(frog_data, min_genes=200)

Normalization, Log transformation and Scaling

sc.pp.normalize_total(frog_data, target_sum=1e6)
sc.pp.log1p(frog_data)
sc.pp.scale(frog_data, max_value=10)

PCA and Neighbor calculations

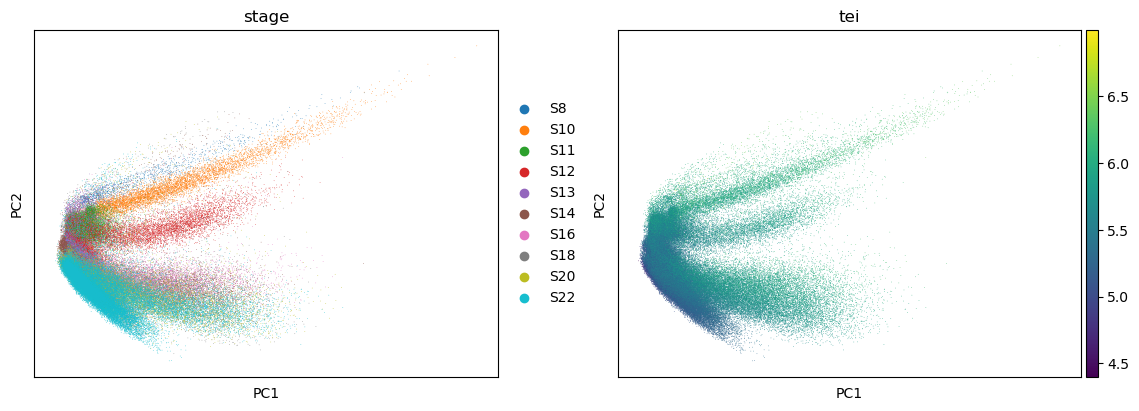

sc.tl.pca(frog_data, svd_solver='arpack')
sc.pl.pca(frog_data, color=['stage', 'tei'])

/opt/anaconda3/envs/scanpy/lib/python3.8/site-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
  cax = scatter(

sc.pp.neighbors(frog_data)

Embedding the neighborhood graph

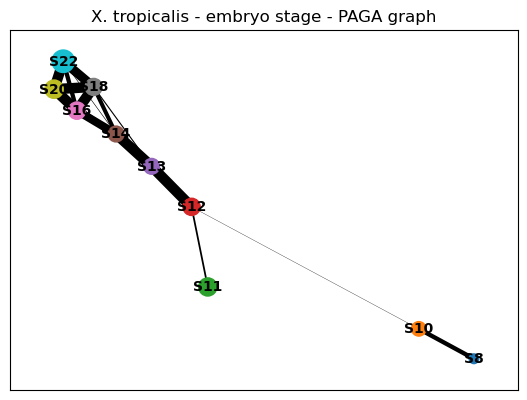

sc.tl.paga(frog_data, groups='stage')
sc.pl.paga(frog_data, title='X. tropicalis - embryo stage - PAGA graph')

UMAP

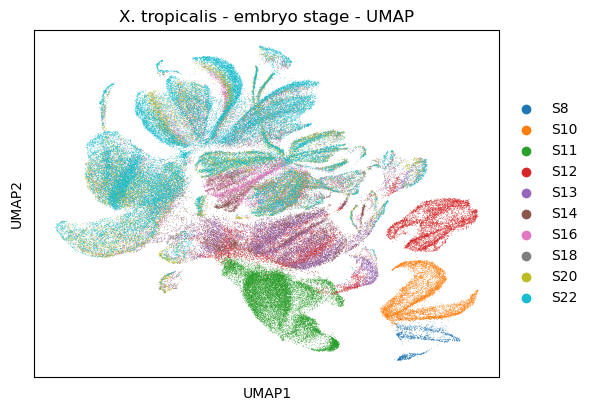

sc.tl.umap(frog_data,
           init_pos='paga')
sc.pl.umap(frog_data,
           title='X. tropicalis - embryo stage - UMAP', color=['stage'])

/opt/anaconda3/envs/scanpy/lib/python3.8/site-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
  cax = scatter(

#plt.rcParams['figure.figsize'] = [7.5, 4.5]

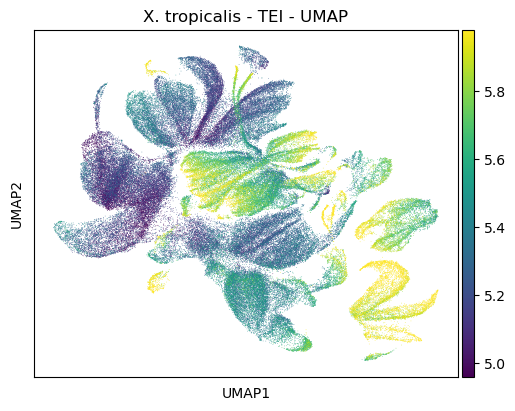

sc.pl.umap(frog_data,
           title='X. tropicalis - TEI - UMAP',
           color=['tei'],
           color_map='viridis',
           vmin='p5',
           vmax='p95')
#plt.rcParams['figure.figsize'] = [6, 4.5]

#3d

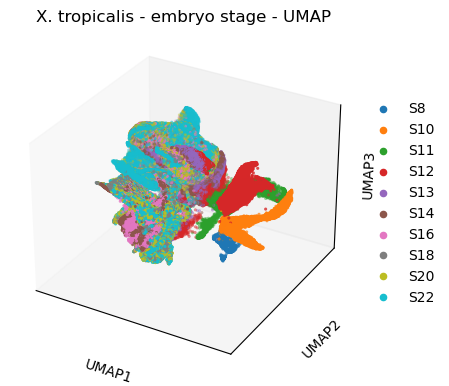

sc.tl.umap(frog_data,
           n_components=3)
sc.pl.umap(frog_data,
           title='X. tropicalis - embryo stage - UMAP', color=['stage'],
           projection='3d')

/opt/anaconda3/envs/scanpy/lib/python3.8/site-packages/scanpy/plotting/_tools/scatterplots.py:325: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
  cax = ax.scatter(

#plt.rcParams['figure.figsize'] = [7.5, 4.5]
sc.pl.umap(frog_data,
           title='X. tropicalis - TEI - UMAP',
           color=['tei'],
           color_map='viridis',
           vmin='p5',
           vmax='p95',
           projection='3d')
#plt.rcParams['figure.figsize'] = [6, 4.5]

import plotly
import kaleido
import plotly.express as px
plotly.offline.init_notebook_mode(connected=False)

frog_data

AnnData object with n_obs × n_vars = 123622 × 25544
    obs: 'orig.ident', 'nCount_RNA', 'nFeature_RNA', 'sample', 'stage', 'group', 'cell_state', 'cell_type', 'tei', 'n_genes'
    var: 'features', 'genes', 'Phylostrata', 'n_cells', 'mean', 'std'
    uns: 'log1p', 'pca', 'stage_colors', 'neighbors', 'paga', 'stage_sizes', 'umap'
    obsm: 'X_pca', 'X_umap'
    varm: 'PCs'
    layers: 'counts'
    obsp: 'distances', 'connectivities'

df = pd.DataFrame( {'UMAP1':frog_data.obsm['X_umap'][:,0],
                    'UMAP2':frog_data.obsm['X_umap'][:,1],
                    'UMAP3':frog_data.obsm['X_umap'][:,2],
                    'cell_type':frog_data.obs['cell_type'].values.astype(str),
                    'cell_state':frog_data.obs['cell_state'].values.astype(str),
                    'tei':frog_data.obs['tei'].values,
                    'stage':frog_data.obs['stage'].values,
                    'cell_id':frog_data.obs.index.to_list()  } )
df.set_index('cell_id', inplace = True)
df.head()

	UMAP1	UMAP2	UMAP3	cell_type	cell_state	tei	stage
cell_id
S8_cell_1	7.549527	5.556860	1.716700	blastula	S8:blastula	6.149558	S8
S8_cell_2	7.573267	5.509485	1.777167	blastula	S8:blastula	6.158777	S8
S8_cell_3	7.555912	5.482943	1.783759	blastula	S8:blastula	6.179419	S8
S8_cell_4	7.496013	5.490688	1.724299	blastula	S8:blastula	6.107512	S8
S8_cell_5	7.656127	5.530446	1.815560	blastula	S8:blastula	6.119982	S8

fig = px.scatter_3d(data_frame = df,
                    x='UMAP1',
                    y='UMAP2',
                    z='UMAP3',
                    color='stage')
fig.update_traces(marker_size = 2)
fig.write_html('frog_scatter_3d_stage.html')

fig = px.scatter_3d(data_frame = df,
                    x='UMAP1',
                    y='UMAP2',
                    z='UMAP3',
                    color='tei',
                    range_color=(5,5.5))
fig.update_traces(marker_size = 2)
fig.write_html('frog_scatter_3d_tei.html')

fig = px.scatter_3d(data_frame = df,
                    x='UMAP1',
                    y='UMAP2',
                    z='UMAP3',
                    color='cell_type')
fig.update_traces(marker_size = 2)
fig.write_html('frog_scatter_3d_cell_type.html')

fig = px.scatter_3d(data_frame = df,
                    x='UMAP1',
                    y='UMAP2',
                    z='UMAP3',
                    color='cell_state')
fig.update_traces(marker_size = 2)
fig.write_html('frog_scatter_3d_cell_state.html')

Please have a look at the documentation for other case studies.
